What Is Chromoly Steel? Properties, Grades & Forging Uses

What Is Chromoly Steel — The Short Answer

Chromoly steel — also written as chrome-moly, chromoly, or CrMo steel — is a low-alloy steel that contains chromium and molybdenum as its primary alloying elements, alongside iron and carbon. The most widely used grade is 4130, which contains approximately 0.28–0.33% carbon, 0.80–1.10% chromium, and 0.15–0.25% molybdenum. These additions transform ordinary carbon steel into a material with dramatically higher strength-to-weight ratio, excellent toughness, and outstanding weldability.

In practical terms: a chromoly steel tube can carry the same structural load as a mild steel tube at roughly 30–40% less weight. That is why aerospace frames, bicycle frames, roll cages, and high-performance hydraulic components routinely specify it. The steel forging industry relies heavily on chromoly grades because the alloy responds exceptionally well to forging temperatures and subsequent heat treatment, making it possible to achieve tensile strengths above 1,000 MPa in finished forged parts.

The Chemistry Behind the Name

The term "chromoly" is a contraction of chromium and molybdenum. Both elements play specific metallurgical roles that are worth understanding separately.

Role of Chromium

Chromium dissolves into the iron matrix and forms carbide phases that increase hardness and wear resistance. It also improves oxidation resistance at elevated temperatures and enhances hardenability — meaning the steel can be hardened to greater depths during quenching. Chromium contents in the 0.8–1.1% range (as found in 4130/4140 grades) provide a meaningful boost in hardenability without making the steel brittle or difficult to weld.

Role of Molybdenum

Molybdenum is the element that sets chromoly apart from simpler chrome steels. Even in small quantities — typically 0.15–0.25% — molybdenum refines grain size, suppresses temper embrittlement, and dramatically increases the steel's creep resistance (its ability to resist slow deformation under sustained loads at elevated temperatures). For steel forging applications, the grain-refining effect of molybdenum is particularly valuable because it produces a more uniform microstructure throughout the cross-section of a forged blank.

Common AISI Grades at a Glance

The AISI/SAE 41xx series covers the most frequently specified chromoly grades. Below is a summary of their key compositions and typical applications.

Mechanical Properties That Define Performance

Chromoly steel's reputation is built on a combination of properties that few other materials can match at its price point. The following figures apply to 4130 and 4140 in normalized or quenched-and-tempered condition, which covers the vast majority of real-world uses.

Tensile and Yield Strength

In the annealed condition, 4130 has a tensile strength of around 670 MPa (97 ksi) and a yield strength near 435 MPa. After quenching and tempering at 315°C, those numbers climb to roughly 1,340 MPa tensile and 1,170 MPa yield. This means the same piece of steel can be "tuned" across a wide strength range simply by adjusting heat treatment parameters — a flexibility that is central to why the steel forging supply chain values chromoly so highly. Forgers can deliver near-net-shape blanks and let the heat treater dial in final properties.

Hardness

Normalized 4140 typically measures 197–235 HB. Hardened and tempered to 28–34 HRC, it offers excellent wear resistance while retaining enough ductility for dynamic loading. This range is common for gears and shafts produced by hot forging followed by controlled heat treatment cycles.

Fatigue Resistance

The endurance limit of chromoly steel — the stress level below which fatigue failure will not occur — is approximately 55–65% of its ultimate tensile strength. For a 4140 component heat treated to 1,000 MPa UTS, this translates to an endurance limit around 580 MPa. Comparable mild steel at 500 MPa UTS would have an endurance limit of only about 250 MPa. This difference is the reason motorsport components, landing gear, and high-cycle forged valve bodies are almost exclusively chromoly.

Impact Toughness

Charpy V-notch impact values for quenched-and-tempered 4140 range from 54 to over 100 J depending on tempering temperature. Higher tempering temperatures sacrifice some strength but deliver markedly better toughness — an important design tradeoff in components that must survive sudden shock loads, such as forged suspension knuckles and drivetrain yokes.

Chromoly Steel in the Steel Forging Process

Steel forging is the process of shaping heated metal under compressive force — either via hammer, press, or roll forging — to produce parts with refined grain flow that follow the contours of the component. Chromoly is one of the preferred alloys for this process, and there are specific technical reasons why.

Forgeability of Chromoly Grades

Chromoly grades 4130 and 4140 have excellent forgeability when worked in the range of 1,150–1,230°C (2,100–2,250°F). The alloy remains ductile enough to fill die cavities without cracking, yet its strength at forging temperature is sufficient to allow precise control of material flow. Grade 4340, which carries additional nickel, is slightly more demanding but is the standard choice for large-cross-section forgings where deep hardenability is paramount.

The molybdenum in all these grades suppresses grain growth during the high-temperature soak before forging. In plain carbon steel, holding at 1,200°C for an extended period causes austenitic grains to grow coarse, which weakens the final part. Molybdenum slows that growth substantially, giving forging shops wider process windows and more consistent metallurgical outcomes across large production batches.

Grain Flow and Structural Integrity

One of the most important advantages of the steel forging process over casting or machining-from-bar is the creation of a continuous grain flow that follows the part geometry. In a forged connecting rod, for example, grain flow wraps around the rod's eye and shank continuously, whereas a machined part cut from bar stock severs those grain lines. Chromoly's combination of strength and ductility allows it to deform extensively during closed-die forging without cracking, making it possible to achieve highly optimized grain flow patterns in complex geometry parts like crankshafts, steering knuckles, and turbine discs.

Post-Forging Heat Treatment

After forging, chromoly parts are typically normalized (air cooled from ~870°C) to relieve forging stresses and produce a uniform microstructure before any machining. Final mechanical properties are then set by quench and temper cycles tailored to the specific grade and required property profile. The deep hardenability that chromium contributes means that even thick-section forgings — up to 75 mm (3 inches) or more in diameter for 4140 — can be hardened uniformly through the section, not just at the surface. This is impossible with plain carbon steels, which go soft at the core of anything thicker than about 25 mm.

Cold Forging of Chromoly

Certain chromoly components — particularly fasteners, small precision shafts, and hydraulic fittings — are produced by cold forging (cold heading or cold extrusion) at room temperature or slightly elevated temperatures below the recrystallization point. Cold forging work-hardens the steel, and chromoly's strain-hardening behavior means the finished part can achieve tensile strengths significantly above 1,000 MPa without any additional heat treatment. This makes cold-forged chromoly fasteners attractive for aerospace and automotive applications where both strength and weight savings matter.

Industries That Depend on Chromoly Steel

Chromoly steel appears in a surprisingly broad range of industries. Its versatility stems from the fact that it can be tuned — through alloy selection, heat treatment, and forming process — to meet very different combinations of strength, toughness, and weight requirements.

Aerospace and Defense

4130 sheet and tubing have been standard in aircraft fuselage construction since the 1930s. The Piper Cherokee, for example, uses 4130 steel tube in its fuselage frame. Landing gear struts, which must absorb massive dynamic loads at touchdown, are typically forged from 4340 chromoly because its combination of high strength and toughness tolerates the repeated impact cycles over the aircraft's service life. The U.S. military's MIL-S-6758 and MIL-S-8503 specifications both call out 4130 and 4340 for structural steel forging applications.

Automotive and Motorsport

NASCAR, IndyCar, and Formula 1 regulations mandate chromoly roll cage construction in most categories because its energy-absorption characteristics are superior to mild steel at equivalent tube weight. Beyond roll cages, chromoly dominates the high-performance steel forging side of automotive manufacturing: forged crankshafts, connecting rods, transmission gears, differential ring gears, and driveshafts are almost universally 4140 or 4340 in performance applications. A forged 4340 crankshaft in a high-revving engine can sustain bending fatigue loads exceeding 800 MPa at millions of cycles — something a cast iron or mild steel equivalent could not approach.

Oil and Gas

Downhole drilling tools — drill collars, stabilizers, subs — are among the most demanding steel forging applications on earth. These components rotate continuously at depth under combined bending, torsion, and axial loads, often at elevated temperatures and in corrosive environments. AISI 4145H (a hardenability-controlled variant of 4140) is the oil industry standard for drill collars precisely because of its predictable through-hardening behavior, toughness at low and elevated temperatures, and resistance to hydrogen-induced cracking. A single drill collar forging can weigh over 3,000 kg and must be ultrasonically inspected to confirm homogeneous microstructure through its full cross-section.

Bicycles and Human-Powered Vehicles

High-end steel bicycle frames have used 4130 chromoly tubing since at least the 1970s. The alloy allows framebuilders to draw thin-wall tubes — some touring and road frames use tubing with walls as thin as 0.6 mm at the tube center — that would crack during drawing if made from plain carbon steel. The result is a frame that can weigh under 1.5 kg while providing road-damping compliance that titanium and aluminum cannot replicate. Custom framebuilders continue to specify double-butted 4130 chromoly precisely because its weldability and slight elasticity produce a ride quality that many cyclists consider superior to stiffer materials.

Heavy Equipment and Agriculture

Forged chromoly components appear throughout agricultural and construction machinery: tractor axles, loader arms, excavator bucket pins, and hydraulic cylinder rods. In these applications the choice is driven by the need to survive shock loads from striking buried rocks or hard ground. A forged 4140 loader arm pivot pin, for instance, can withstand impact energies that would deform or fracture an equivalent-sized mild steel pin, reducing machine downtime in fields where replacement is costly and slow.

Welding Chromoly Steel — What You Need to Know

Chromoly is weldable by TIG (GTAW), MIG (GMAW), and stick (SMAW) processes, but it requires more care than mild steel. The higher carbon equivalent means it is susceptible to hydrogen-induced cracking (cold cracking) if moisture is present in the heat-affected zone or if the weld cools too quickly.

Preheating Requirements

For 4130 tubing under 3 mm wall thickness, preheat is often optional when TIG welding with ER80S-D2 or ER70S-2 filler. For 4140 or any chromoly section above about 6 mm, preheating to 175–260°C (350–500°F) is standard practice. The preheat slows the cooling rate through the martensite transformation range, reducing residual stress and the risk of HAZ cracking. Failure to preheat heavy-section 4140 welds is one of the most common causes of delayed cracking in steel forging fabrication work.

Filler Metal Selection

For most structural applications where post-weld heat treatment (PWHT) is not performed, ER70S-2 TIG wire is the standard recommendation because its lower strength reduces residual stress in the weld joint. Where the weld must match base metal strength — as in pressure-bearing steel forging assemblies — ER80S-D2 or even ER100S-1 wire is specified, always paired with preheat and PWHT. The widely-used AWS D1.1 structural welding code and ASME Section IX both provide detailed guidance on procedure qualification for 4130 and 4140 weld joints.

Post-Weld Heat Treatment

PWHT for chromoly weldments typically involves stress-relieving at 595–650°C (1,100–1,200°F) for one hour per 25 mm of section thickness. This reduces residual tensile stresses, tempers any hard martensite formed in the heat-affected zone, and improves toughness. For components that will be subsequently heat treated to full strength — such as forged-and-welded assemblies — a full normalize, quench, and temper cycle after welding is the most reliable approach.

Chromoly vs. Other Steels — Where It Wins and Where It Doesn't

Chromoly is not the right choice for every application. Understanding how it stacks up against the alternatives helps make better material selection decisions.

The table highlights chromoly's dominant position in the strength-versus-weldability-versus-forgeability triangle. It is stronger than mild steel by a factor of two or more in heat-treated condition, yet still weldable and readily forgeable — qualities that tool steels and many high-alloy grades cannot claim. Its weakness is corrosion resistance; chromoly must be painted, plated, or otherwise protected in outdoor or wet service environments. In aggressive corrosion environments, stainless steel grades or coated alternatives are the right choice despite their cost penalty.

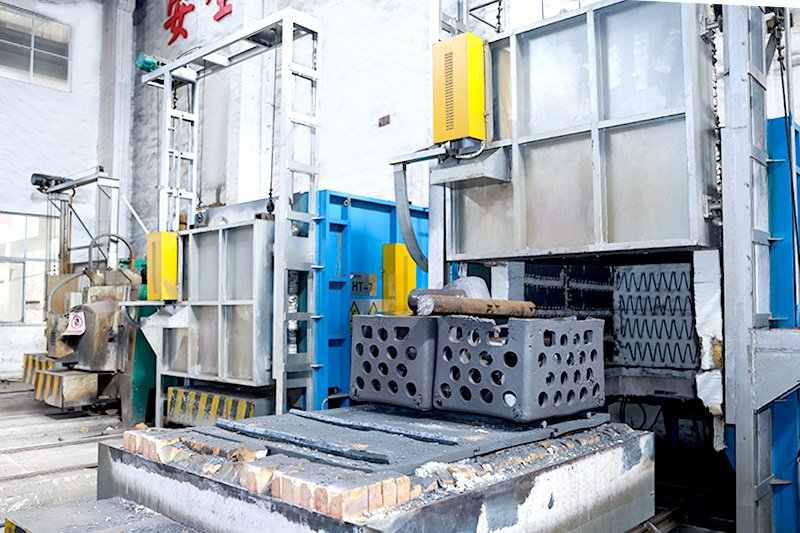

Heat Treatment Processes for Chromoly Steel

Heat treatment is what unlocks the full potential of chromoly alloys. The same bar stock delivered from the mill can become a soft, easily machined blank or an ultra-high-strength structural member depending on the thermal processing applied to it.

Annealing

Full annealing involves heating to about 855–870°C, holding to austenitize fully, then cooling slowly in the furnace. The result is a soft, fully pearlitic microstructure with hardness around 170–200 HB — ideal for machining complex features before final heat treatment. Steel forging blanks are commonly supplied in this condition to allow finish machining of threads, bores, and slots before the final quench-and-temper cycle.

Normalizing

Normalizing (heating to ~870°C, then air cooling) produces a finer, more uniform pearlite than annealing. It is the standard condition for as-delivered forged chromoly bar because it provides consistent, predictable properties throughout the section without the time and energy cost of controlled furnace cooling. Normalized 4140 typically shows 229 HB hardness and 655 MPa tensile strength, which is adequate for many structural applications without further treatment.

Quench and Temper

The Q&T cycle is the workhorse heat treatment for chromoly. The steel is austenitized at 845–870°C, quenched in oil or polymer to form martensite, then tempered in the range of 175–650°C to adjust the strength-toughness balance. Lower tempering temperatures give higher strength and hardness at the cost of toughness; higher temperatures produce tougher, more ductile parts with lower yield strength. Most engineering specifications for forged chromoly parts target a tempered martensite microstructure with 28–36 HRC for gears and shafts, or 38–44 HRC for wear-resistant applications like dies and tool bodies.

Case Hardening

Chromoly grades with lower carbon content — particularly 4118 and 8620 (a nickel-chromoly grade) — are used for carburizing applications where the surface is enriched with carbon to a depth of 0.5–1.5 mm. The carburized case can reach 58–62 HRC, providing exceptional wear resistance, while the tough chromoly core absorbs impact loads. Gear teeth produced by this process combine surface hardness sufficient to resist pitting and abrasion with a core tough enough to resist tooth-root bending fatigue — a combination that defines the modern automotive transmission gear.

Induction Hardening

Induction hardening selectively heats only the surface layer of a chromoly part using an electromagnetic coil, then immediately quenches. The result is a hard surface (typically 50–58 HRC for 4140) with a tough core that retains the normalized or Q&T microstructure. This is the standard treatment for chromoly shafts, crankshaft journals, and camshaft lobes, where the bore or journal surface must be hard but the shaft body must remain tough enough to transmit torque without fracturing.

Surface Finishing and Corrosion Protection

Chromoly steel contains only about 1% chromium — far below the 11% minimum required for stainless behavior — so it corrodes freely if left unprotected. For most structural applications, the following surface treatments are standard:

• Zinc phosphate primer + epoxy topcoat: Standard for automotive chassis and suspension forged components. Provides excellent adhesion and moderate corrosion resistance at low cost.
• Black oxide: Light corrosion protection suitable for indoor mechanical components. Adds minimal dimensional change (under 0.001 mm) — important for precision forged parts with tight tolerances.
• Hard chrome plating: Used on hydraulic rods and wear surfaces. Chrome thickness of 0.05–0.25 mm provides both corrosion resistance and a hard sliding surface above 70 HRC equivalent.
• Electroless nickel: Uniform coating regardless of geometry — ideal for complex forged valve bodies and fittings where dimensions in bores and threads must be maintained.
• Cadmium plating (aerospace): Still specified in many military and aerospace applications for its sacrificial protection and excellent compatibility with aluminum structures. Restricted in civilian applications due to environmental regulations.

For oil and gas downhole tools, where coatings would be abraded away rapidly, corrosion-resistant overlays such as HVOF tungsten carbide or electroless nickel-phosphorus are applied to contact surfaces, while the chromoly body is protected only in storage and transit.

Machining Chromoly Steel Effectively

Chromoly in the annealed condition machines well with standard high-speed steel or carbide tooling. In the hardened or normalized condition, it is moderately demanding. Key machining parameters for 4140 in normalized condition (229 HB) with carbide tooling are approximately:

• Turning speed: 200–250 m/min (660–820 ft/min)
• Feed rate: 0.2–0.4 mm/rev for roughing
• Depth of cut: 2–5 mm for roughing passes
• Coolant: Flood cooling with sulfurized or chlorinated cutting oil is recommended to reduce built-up edge on the insert

Hardened chromoly above 45 HRC requires CBN (cubic boron nitride) or ceramic inserts for turning. Hard turning of induction-hardened shafts to replace cylindrical grinding is now a common practice in high-volume forging-to-finish production lines, saving significant cycle time when tolerances in the IT6–IT7 range are acceptable.

Drilling deep holes in 4140 — common for oil passages in crankshafts and steering racks — is performed with solid carbide or cobalt-HSS drills at reduced feed rates (approximately 60% of those used for mild steel) to manage chip evacuation and prevent work hardening in the bore wall.

Specifying Chromoly Steel — Standards and Sourcing

When specifying chromoly for engineering applications, the following standards are most commonly referenced:

• ASTM A29/A29M: General requirements for steel bars — covers hot-rolled and cold-finished 4130, 4140, 4150, 4340 in bar form.
• ASTM A519: Seamless mechanical tubing — the primary specification for 4130 drawn-over-mandrel (DOM) tubes used in bicycle frames and aircraft structures.
• ASTM A322: Steel bars, alloy, standard grades — references all 41xx and 43xx grades with compositional requirements.
• AMS 6350 / AMS 6370: SAE Aerospace Material Specifications for 4130 and 4140 — used when aerospace traceability is required.
• ISO 683-2: International standard covering heat-treatable alloy steels including the Cr-Mo grades equivalent to 4130/4140.
• DIN 42CrMo4 / EN 1.7225: European equivalents to 4140, widely used in European steel forging supply chains for automotive and industrial components.

When purchasing for critical applications — particularly in steel forging, pressure vessel, or aerospace contexts — always request a mill test report (MTR) certifying chemical composition and mechanical properties. Counterfeit or misidentified alloy steel is a documented problem in global supply chains, and an MTR from an accredited mill is the minimum assurance of receiving what was ordered.

Emerging Uses and Future Outlook

Chromoly steel is not a material of the past. Several emerging application areas are expanding its use, particularly where the combination of steel forging process advantages and high strength-to-weight ratio intersect with new engineering challenges.

Hydrogen Storage and Pressure Vessels

As hydrogen fuel cell technology matures, 4130 and 4140 chromoly are candidate materials for high-pressure hydrogen storage vessels operating at 35–70 MPa. Their combination of high strength (enabling thin walls), weldability (for fabrication), and toughness (for pressure cycling fatigue) positions them against more expensive titanium alloys, though hydrogen embrittlement resistance requires careful alloy and heat treatment selection, typically targeting yield strengths below 690 MPa to stay within hydrogen compatibility thresholds defined by ASME B31.12.

Electric Vehicle Drivetrain Components

The shift to electric vehicles has not reduced demand for high-strength forged steel components — it has changed the load profile. EV motors deliver peak torque instantaneously from zero rpm, imposing shock loads on gearbox components that exceed those from conventional combustion drivetrains. Forged chromoly gears and shafts, with their refined grain flow and deep hardenability, are well suited to this demand profile. Several major Tier 1 automotive suppliers have reported increased specification of 4340 chromoly in single-speed EV reduction gear sets compared to the multi-speed transmissions they replace in equivalent power-class vehicles.

Additive Manufacturing Hybrid Processes

Directed energy deposition (DED) additive manufacturing using 4130 and 4140 chromoly wire or powder feedstock is being actively developed for repair of high-value forged components — particularly in aerospace and oil field tool applications. The ability to deposit material exactly where worn or damaged, then machine to final dimension and locally heat treat, extends the service life of expensive forged parts that would otherwise be scrapped. Research groups at several universities have demonstrated that DED-deposited 4140 layers can achieve mechanical properties within 10–15% of wrought forged stock after appropriate heat treatment.
